PBX Switches record call data in files known as CDRs (Call Detail Records) or just billing records. This record contains the details of every phone call made. In a corporate environment, the switches could be scattered geographically between regions or states.

XL-PABX is a solution designed specifically for PBX data collection provided by the output interface (RS-232 or Ethernet) trough the network. It is able to receive, send and store the data for corporate pricing, cost control and telephony account checking. This collector provides a consistent and reliable platform for collecting data through features specifically designed for critical applications that must run continuously, supporting network failures and maintenance in the target systems without data loss. PBX CDR collectors are commonly known as "Buffer".

Technical Specification:

  • Data collection

    • Collection without data loss in case of power failure
    • Serial port for data collection
    • Storage area with Non-volatile memory (Flash)
    • RS-232 and Socket collecting (TCP and UDP)
    • End of record configuration
    • File closing by number of records, collection time or time without records
    • Permanent filename cofiguration
    • Generated files visualization
  • Application softwares

    • Gzip compression
    • File content visualization
    • Local collector configuration through serial console or SSH
    • Configuration through Web (HTTP)
    • Log visualization
    • RS232 or Ethernet input data visualization
  • Data transfer

    • FTP and SFTP Server
    • FTP Client
  • Security

    • Remote restart
    • Remote software update
  • Approved switch models

    • PBX switches through RS-232 interface
    • PBX switches through Ethernet interface and Client and Server TCP/IP socket collection
    • PBX switches through Ethernet interface and Server UDP socket collection
    • PBX switches through Ethernet interface and Server UDP socket collection in Syslog format

Hardware Platform:

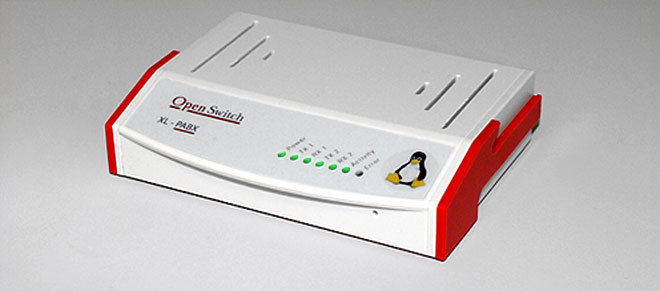

The XL-PABX equipment uses the HDW-B100 platform.
